What is Metal Injection Molding (MIM)?

A High-Precision Manufacturing Process for Small, Complex Metal Parts

What is MIM?

Metal injection molding (MIM) combines plastic injection molding and powder metallurgy to manufacture small, complex metal parts efficiently and in high volumes. The process enables greater design flexibility and allows multiple components to be integrated into a single precision part.

Slide

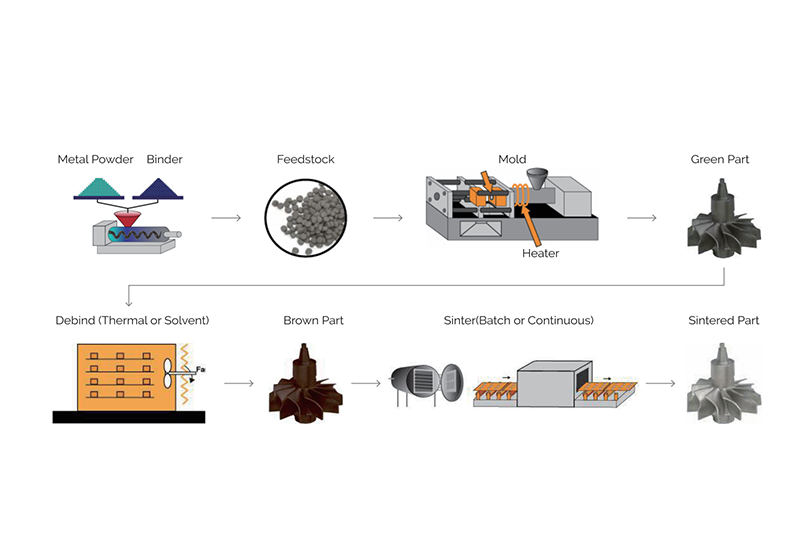

Inside the MIM Process

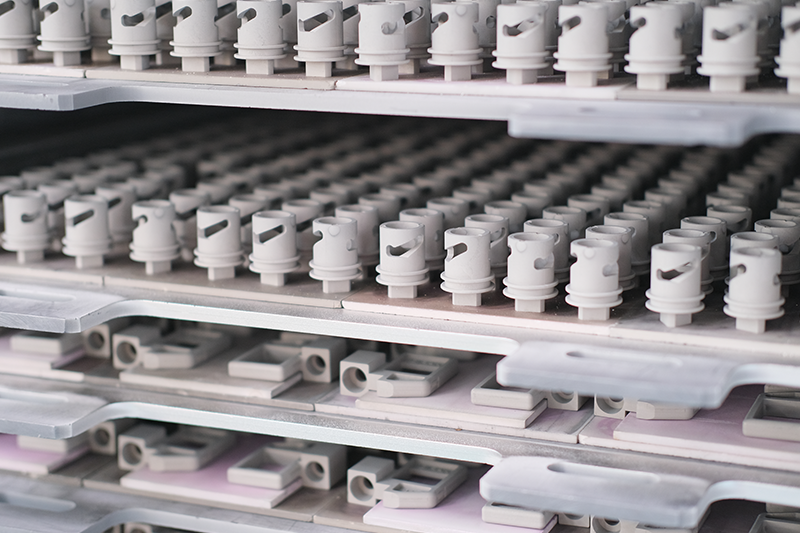

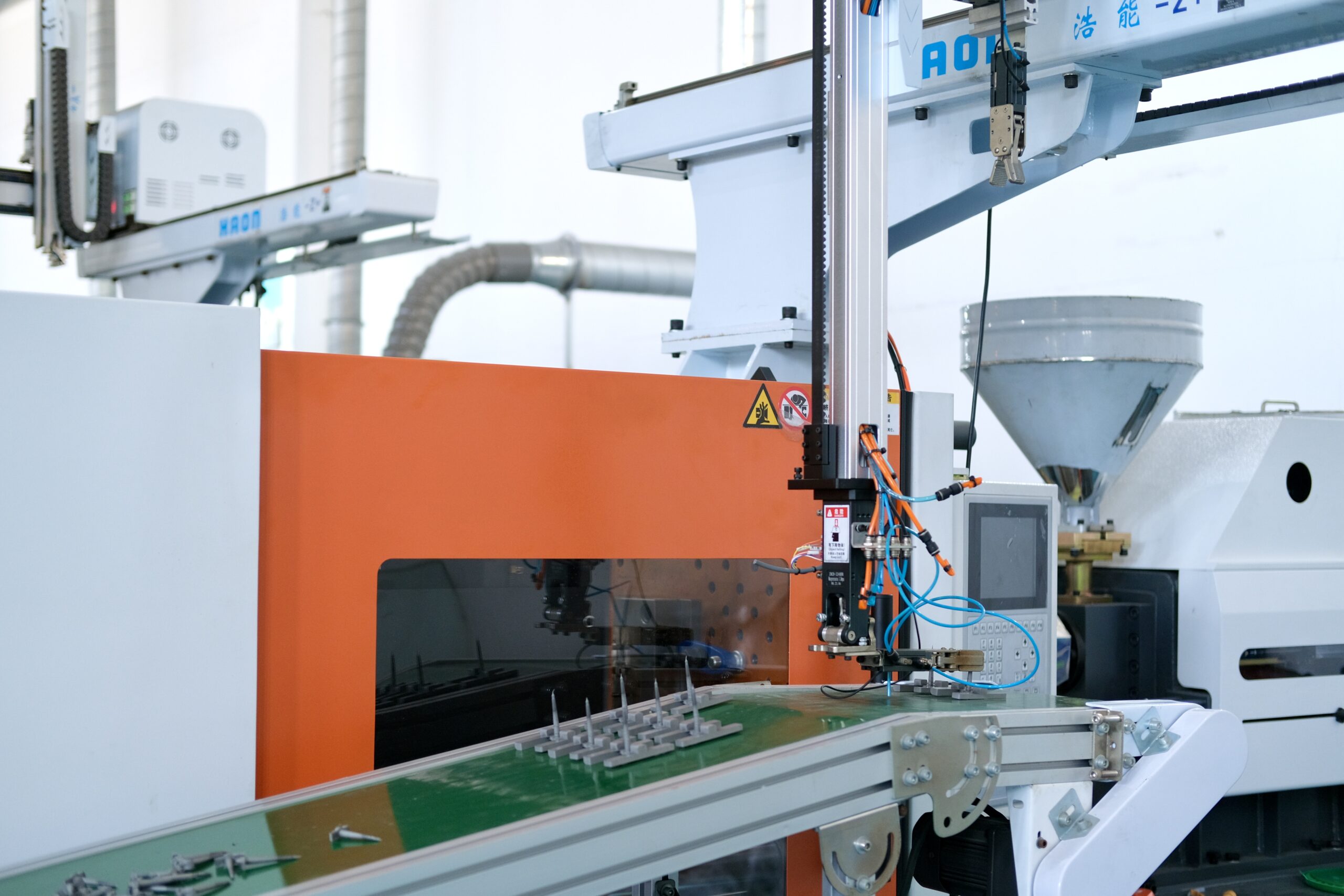

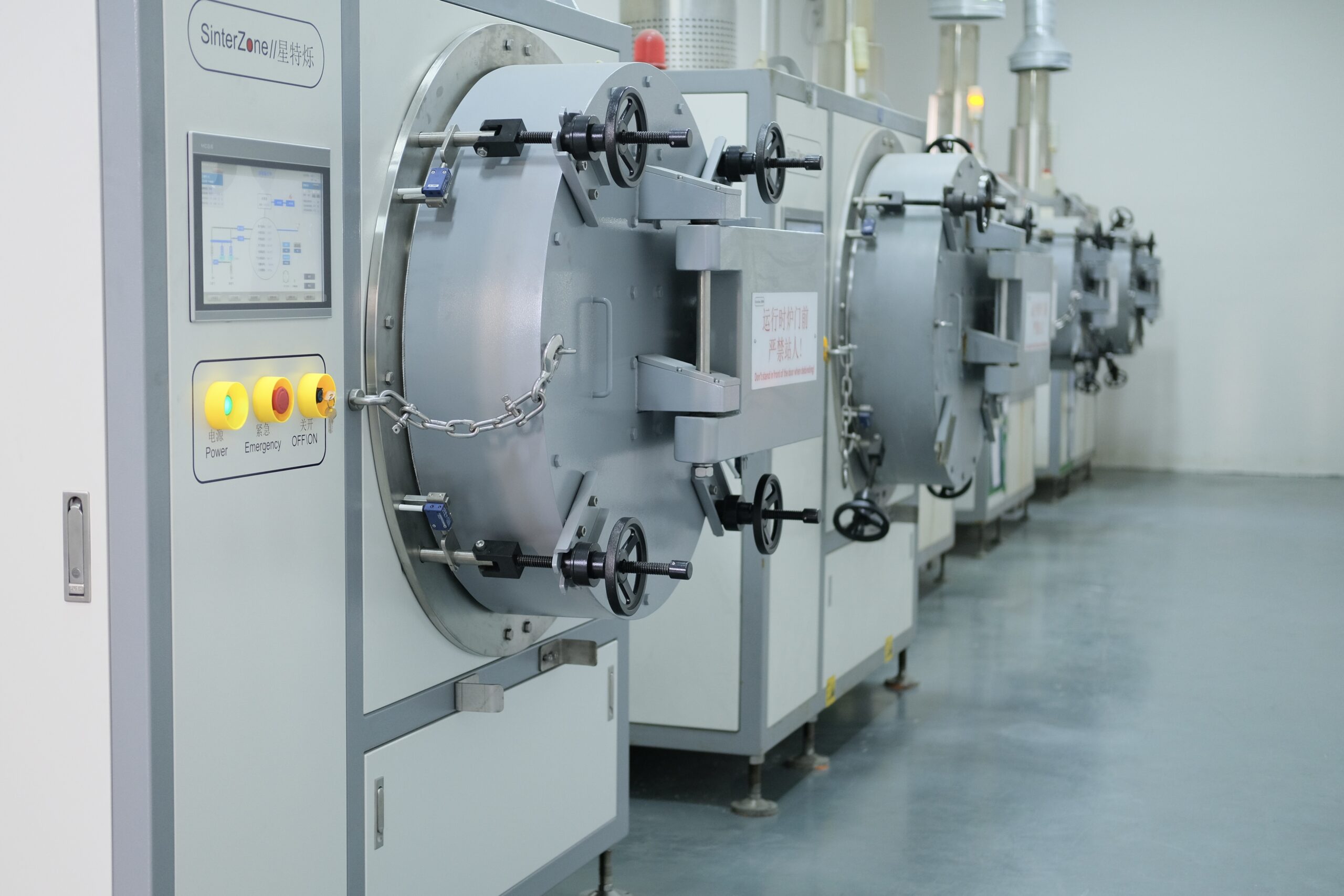

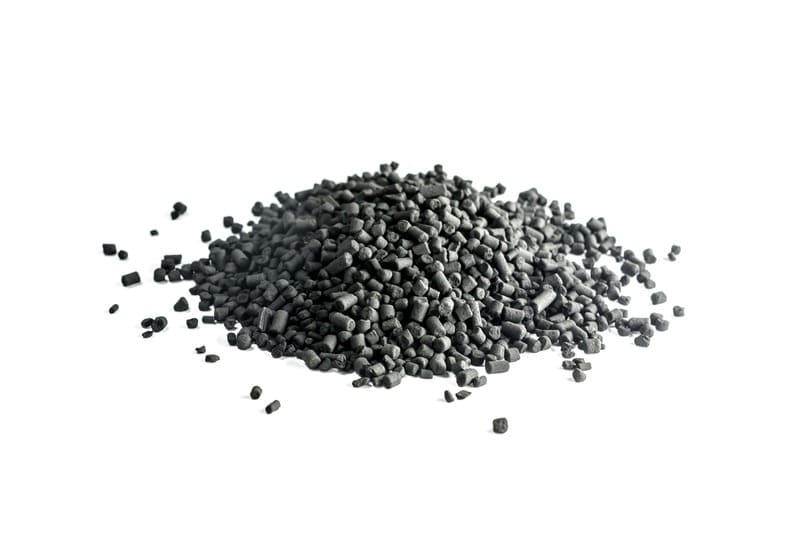

Metal injection molding turns metal powder and binders into moldable feedstock. Through injection, debinding, and sintering, it creates strong, complex parts with high precision. This process is ideal for efficient mass production.

Why Metal Injection Molding Works

MIM is ideal for creating compact, intricate parts at scale with excellent performance.

Fine detail and complex shapes
High part density
Flexible design options
Custom-made solutions
Stable quality in mass production
Integration of multiple parts
Fewer assembly steps

Broad material selection
Excellent mechanical properties
Shorter production cycles
High dimensional accuracy
Lower defect rates
Cost-effective for volume runs

Key Features of Our MIM Process

Key capabilities of our metal injection molding process include

Parts typically under 200 grams
Tonnage capacity: 60T to 200T
Minimum wall thickness: 0.15 mm

Dimensional tolerances of ±0.5%
Suitable for annual volumes over 10k parts
Feedstock: in-house or outsourced

Choose Your MIM Materials

We support a wide range of metal powders suitable for MIM production, including.

Stainless Steels
(304, 316, 17-4PH, 420, 440C, etc.)
Low Alloy Steels
(40CrMo, C45, C35E, SKD11, etc.)
Specialty Materials

Download MIM Material List

Comparison of MIM with other processes

Characteristics	Metal injection molding	powder metallurgy	die casting (zinc, aluminum)	Precision casting	Mechanical processing
Shape complexity	High	Low	High	Medium	High
Minimum thickness	0.5mm	1mm	0.8mm	2mm	0.15mm
Surface roughness	1 μ m Ra thin	Thick	Medium	5 μ m Ra Medium	thin
Mechanical strength	High	Medium	Low	Medium	High
Materials selection	Large	Medium	Small	Medium	Large
Density	98~99.5%	<95%	100%	100%	100%
Precision	Medium	High	Medium	Medium	High
Electroplating	Good	Low	Medium	Good	Good
Mass production	High	High	High	Medium	Low
Cost	Medium	Low	Medium	Medium	High

Explore Our MIM Capabilities

See how our equipment and engineering team bring complex metal parts to life, from prototyping to full scale production.
